KLAI-201 colorful asphalt shingles

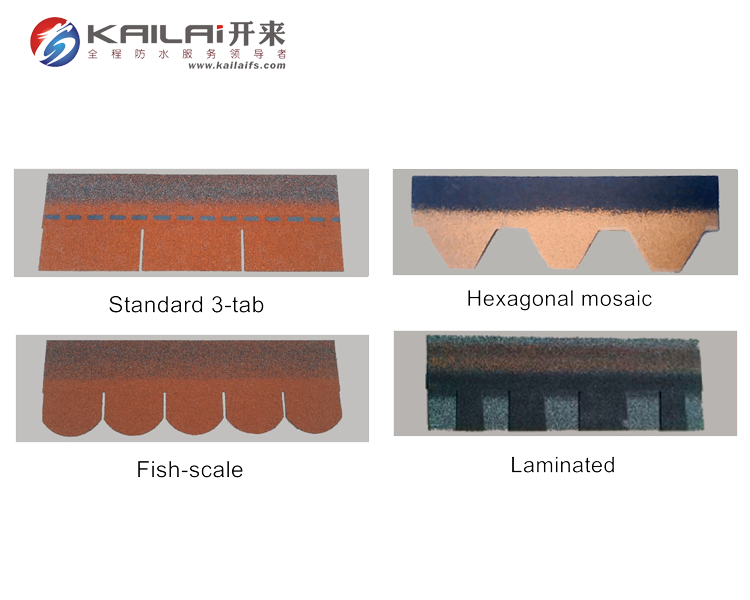

Part number:KLAI-201 colorful asphalt shinglesSpecification:hexagonal mosaic,fish-scale,standard 3-tab,laminatedStandard:GB/T20474

We're here to help: Easy ways to get the answers you need. GET PRICE DOWNLOAD

Share with :

Description Asphalt shingles is most widely used roofing covers,which is made out of glass fiber mat as base material which soaked in Sinopec high quality Petroleum asphalt, the upper surface filmed with colored mineral granules ,the lower surface filmed with insulative materia which provides more protection from impact and UV degradation and improves fire resistance.

Classified by Style: flat tile(P) ,imbrication tile(L)
Classiefied by film material:mineral granules(M), metal foil(C),Glass fiber mat with or without ribs(G)

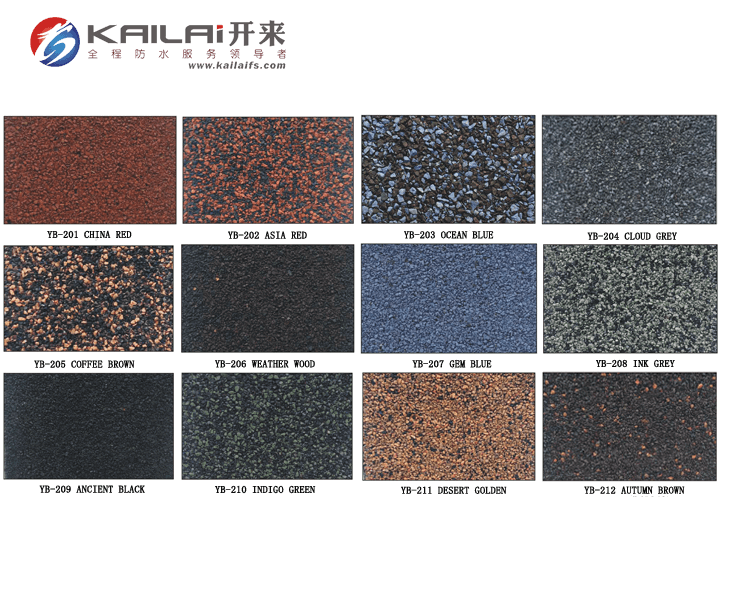

Feature (1)Various appearance and 12 different colors for your choice.
(2)Durable waterproofing and weather resistance.
(3)Color never fade and corrosion resistance,dust -free.
(4)Excellent waterproof performance and wind resistance.
(5)Fairly easy installation,wide scope of applicationLight Weight, No-special Fitting and Low Installation Cost

Technical Index

NO Test Item Flat tile(P) Imbrication tile(L)
1 Soluble content(g/m2) 1000 1800
2 Tensile(N/50mm) ≧ vertical 500
Lateral 400
3 Heat resistance(90℃) no flowing,no dripping
4 Flexibility (90℃) No crack
5 Nail pull-out resistance /N ≧ 75
The Flexibility could be customized

Application Range

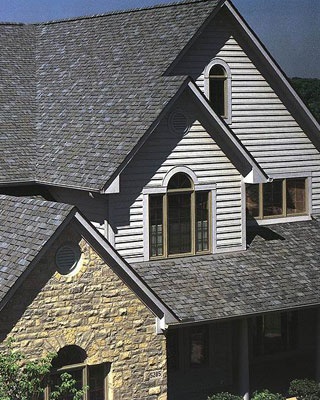

Widely used on slope roof for multilayer and single layer waterproofing.
